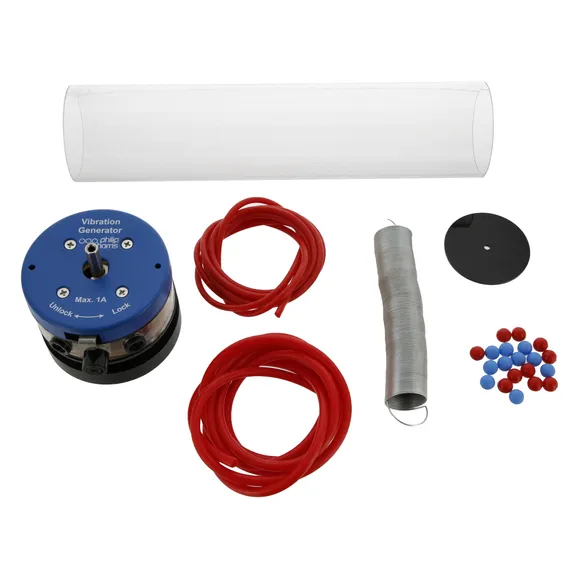

The Vibration Generator gives mechanical oscillations when fed by signals from an oscillator/A.F. amplifier e.g. a Power Signal Generator. A special high temperature coil system enables the unit to be operated at its maximum rating for a prolonged period without damage due to overheating.
-Maximum peak to peak displacement: 8mm at 1Hz, decreasing with increase in frequency.
-Total frequency range: D.C. to 10kHz.
-Coil impedance: 3.5? at 50Hz
-Dimensions: 100 x 90 x 95mm high.
-Vibrator can be used in any position, free standing or clamped.
